Synthesis Gas Chemistry and Synthetic Fuels

Introduction

This text is based on the Chapter:
Synthesis Gas to Hydrogen, Methanol and Synthetic Fuels, by J. van de Loosdrecht and J.W. Niemantsverdriet, published in the book “Chemical Energy Storage” (R. Schloegl, Ed.), De Gruyter, Berlin, 2013

Synthesis gas or briefly, syngas, is a mixture of carbon monoxide, carbon dioxide and hydrogen. Syngas can be produced from many sources, including natural gas, coal, biomass, or virtually any hydrocarbon feedstock, by reaction with steam or oxygen. Syngas is a crucial intermediate resource for production of hydrogen, ammonia, methanol, and synthetic hydrocarbon fuels.

The formation of syngas is strongly endothermic and requires high temperatures. Steam reforming of natural gas (or shale gas) proceeds in tubular reactors that are heated externally. The process uses nickel catalyst on a special support that is resistant against the harsh process conditions. Waste heat from the oven section is used to preheat gases and to produce steam. This plant generates syngas with H₂/CO ratios in the range of 3-4, and is suitable for hydrogen production.

Partial oxidation of methane (or hydrocarbons) is a non-catalytic, large-scale process to make syngas and yields syngas with H₂/CO ratio of about 2 [4]. This is an optimal ratio for gas-to-liquids plants. A catalytic version of partial oxidation (CPO), based on short-contact time conversion of methane, hydrocarbons or biomass on e.g. rhodium catalysts, is suitable for small-scale applications [5,6].

Autothermal reforming (ATR) is a hybrid, which combines methane steam reforming and oxidation in one process [1]. The heat needed for reforming is generated inside the reactor by oxididation of the feed gas. As POX, ATR is also suitable for large-scale production of syngas for gas-to-liquids or large-scale methanol synthesis processes.

Alternative routes to syngas, such as reduction of CO₂ from flue gas with H₂ from electrolytic splitting of water may become interesting from the viewpoint of storage of wind or solar energy [7].

Synthesis gas (syngas) can be produced from a variety of sources and is a versatile intermediate for production of chemicals and fuels. Gas-to-Liquids (GTL), Coal-to-Liquids (CTL), Biomass-to-Liquids (BTL) all rely on the catalytic conversion of syngas.

Reactors and process layout for syngas production from natural gas and shale gas.

Hydrogen from syngas

The water-gas-shift reaction

In the water-gas-shift reaction [8,9],

CO + H₂O ⇋ CO₂ + H₂ – 41 kJ/mol (1)

CO is used as a reductor to shift syngas entirely to H₂ (and CO₂). The high temperature water gas shift uses iron oxide as a catalyst and proceeds at 300-500 dg.C. A low-temperature process (around 200 dg.C) based on a copper-zinc oxide catalyst drives the equilibrium further towards hydrogen, but requires clean feed gas. Pressure swing adsorption purification leads to high-purity hydrogen [1].

Syngas to Methanol

Methanol is a versatile intermediate for the chemical industry, but can also serve as a fuel. Even better is dimethyl ether, applicable as bottle gas for cooking (like camping gas) or as a substitute for diesel fuel. Methanol is also used in the transesterification of vegetable oils to produce biodiesel. Methanol is produced catalytically from a mixture CO₂:CO:H₂ = 5:5:90, at 50-100 bar and 225-275 dg.C over Cu/ZnO/Al₂O₃.

The predominant reactions are

CO₂ + 3 H₂ ⇋ CH₃OH + H₂O – 47 kJ/mol (2)

or combined with the water-gas shift reaction (1) above

CO + 2 H₂ ⇋ CH₃OH – 91 kJ/mol (3)

Copper metal is the catalytically active phase, and ZnO is a chemical and structural promoter, while alumina is only a structural promoter.

Syngas to synfuels – The Fischer-Tropsch Synthesis

The Fischer-Tropsch Synthesis (FTS) converts syngas into hydrocarbons which form the basis for gasoline, diesel, jet fuel, and chemicals such as olefins and waxes [12-15]. It forms the heart of the Gas-to-Liquids (GTL) and Coal-to-Liquids (CTL) plants in South Africa, Qatar, Malaysia and China. The product distribution is broader than liquids hydrocarbons alone, and includes methane and alkanes, C_nH_2n+2 (with n from 1 → 100), alkenes or olefins (C_nH_2n; n ≥ 2), and to a lesser extent oxygenated products such as alcohols. Catalysts for the Fischer-Tropsch Synthesis are either based on cobalt or the much cheaper iron. In fact, the iron-based catalyst is an iron carbide under reaction conditions, whereas cobalt works in the metallic state.

The overall reaction equations are straightforward (but hide a tremendous amount of mechanistic complexity):

n CO + (2n+1) H₂ → C_nH_2n+2 + n H₂O (4)

n CO + 2n H₂ → C_nH_2n + n H₂O (5)

n CO + 2n H₂ → C_nH_2n+1OH + (n-1) H₂O (6)

Reaction conditions include temperatures between 200 and 350 dg.C and pressures between 20 and 50 bar. The reactions are exothermic and dealing with the heat is an important issue in the reactor design.

The reactions produce water, which is the predominant pathway to remove the O-atom from the CO. Iron catalysts have activity for water gas shift (1), implying that the formed product water my shift to H₂ and CO₂ making iron-based FTS less dependant on the initial H₂:CO ratio, which may be as low as 0.5: just add the WGS reaction (1) to the symbolic FTS reaction equation per one CO molecule:

CO + 2H₂ = -CH₂– + H₂O (7)

which gives:

2CO + H₂ ⇋ -CH₂– + CO₂ (8)
This makes Fe-based FTS the preferred option for Coal-to-Liquids technology.

The Surface Chemistry

CO needs to dissociate before it can convert to hydrocarbons, either directly, or indirectly with the aid of hydrogen. Cobalt and iron readily split the CO bond, and are the preferred catalysts in practice. While cobalt is active as a metal, iron forms carbides in synthesis gas [15].

The FTS mechanism has been investigated for many years and remains under scientific debate. In its most straightforward form, CO adsorbs, splits into C and O, after which C-atoms hydrogenate to CH_x species. These then couple to longer hydrocarbons [17], according to the sequence (* = active site)

Adsorption and dissocation:

CO + * ⇋ CO_ads (9)

CO_ads + * ⇋ C_ads + O_ads (10)

H₂ + 2* ⇋ 2 H_ads (11)

O-rejection by water formation:

O_ads + H_ads ⇋ OH_ads + * (12)

OH_ads + H_ads ⇋ H₂O + 2* (13)

C-hydrogenation:

C_ads + H_ads ⇋ CH_ads + * (14)

CH_ads + H_ads ⇋ CH_2,ads + * (15)

CH_2,ads + H_ads ⇋ CH_3,ads + * (16)

Chain growth:

CH_3,ads + CH_2,ads ⇋ C₂H_5,ads + * (17)

C_nH_2n+1,ads + CH_2,ads ⇋ C_n+1H_2(n+1)+1,ads + * (18)

Termination:

CH_3,ads + H_ads ⇋ CH₄+ 2* (19)

C₂H_5,ads + H_ads ⇋ C₂H₆ + 2* (20)

C₂H_5,ads ⇋ C₂H₄ + H_ads (21)

Alternative mechanisms, for example, in which CO bond breaking is assisted by reaction with hydrogen (Figure 3) [17-20], or chain growth occurs by CO insertion, are available also in the literature, and form a subject of intense discussion.

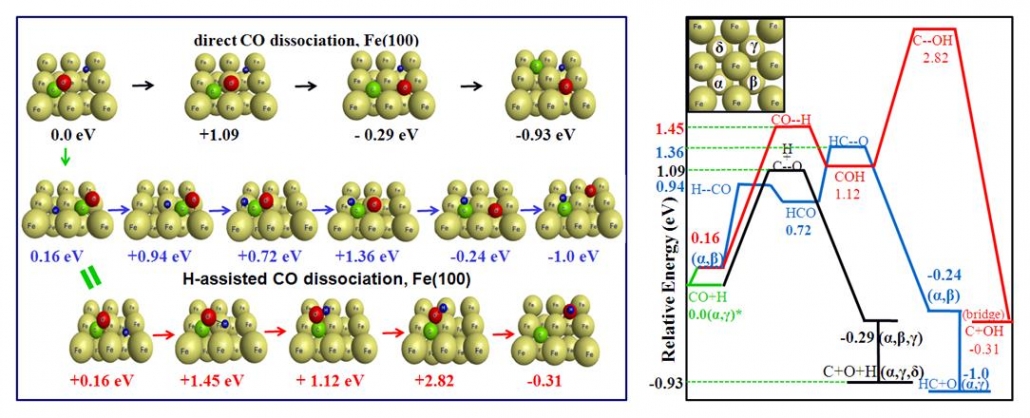

Figure 3 Molecular modeling simulation of CO dissociation on an iron (100) surface (adapted from Elahifard et al. [20]).

Figure 4 Fischer-Tropsch product distributions in terms of interesting hydrocarbon fractions as a function of the chain-growth , alpha. The insert shows a few Anderson-Schulz-Flory plots according to the logarithmic form.

Hydrocarbon product distribution

Fischer-Tropsch synthesis is a polymerization process. Even without knowing the exact mechanism, we can express the selectivity towards a product with n carbon atoms as

where C stands for the concentration of a hydrocarbon with n carbon atoms and α is the probability that the chain grows.

This is the Anderson-Flory-Schultz distribution, see Figure 4, for how the Fischer-Tropsch product distribution depends on the chain growth probability, α. Converting it in logarithmic form provides an easy opportunity to verify if a measured selectivity pattern matches this distribution:

if one plots ln (S_n/n) versus n, see the inset in Figure 4.

The ASF distribution describes the product distribution reasonably well, but often the methane yield is higher and the C₂ yield lower than predicted, and it is also common to observe a higher chain-growth probability for longer hydrocarbons than for shorter ones [21].

Fischer-Tropsch Technology

Figure 5 shows the different reactor types that are presently in use, along with process conditions. Low temperature FTS is good for long chains, waxes, and high-temperature for shorter products, i.e. if chemicals and/or gasoline are the desired product [22-25]. LTFT reactors are three-phase systems, with solid catalysts, gaseous reactants, and gaseous and liquid products. LT and MTFT form the basis for the modern GTL and CTL plants. The wax is subsequently hydrocracked to form mostly diesel fuel and some naphta.

Fischer-Tropsch Catalysts

Both iron and cobalt catalysts can be used for the LTFT processes in CTL and GTL plants [15,23,26]. Iron-based LTFT catalysts contain promoters like potassium and copper as well as a structural modifier such as silica. These catalysts are normally prepared by co-precipitation of the iron and copper elements, followed by impregnation with the potassium and structural promoters. Thereafter, the catalyst has to be shaped for use in either a fixed bed (e.g. extrudates) or a slurry phase FT reactor (e.g. spraydried spheres), followed by calcination. Prior to use in the FT process, the oxidized iron catalysts need to be activated or conditioned in hydrogen or synthesis gas. During the FT process the iron metal is converted to an iron carbide, and depending on the conditions, oxidized again to an iron oxide [27,28].

Figure 5 Overview of Fischer-Tropsch technologies and reactor types used.

Outlook

Fischer-Tropsch synthesis represents proven technology for conversion of gas and coal into synthetic fuels, already since 90 years ago [29,30]. It gained recently interest in the context of converting solar and wind electricity to synthetic fuels and chemicals (Power to X) as well. Although much of the scientific research has concentrated on GTL technology and cobalt catalysts, it is the CTL technology based on iron catalysts that has seen the largest growth in China. Significant improvements of the iron-based catalysts have been realized, but improvements in stability and control over selectivity are still welcome. In fact, scientific understanding of the complex iron-carbon-oxygen phases as they feature in the process, and the relation between catalyst composition and the surface chemistry has still not developed very far beyond insight in highly simplified systems. In this respect the metallic cobalt FTS catalyst is significantly better understood. It is our strong belief, however, that detailed mechanistic insight in iron-based Fischer-Tropsch chemistry is urgently needed to provide a rational basis for improvements in the process.
